Gnéithe

● Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade.

● Integrated OAM remote configuration and maintenance function.

● Support rich QinQ VLAN functions and IGMP Snooping multicast features.

● Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.

● Support NAT, Firewall function.

● Support IPv4 and IPv6 dual stack.

Sonraíocht

Mír Theicniúil	1GE plus 1FE XPON ONU
Comhéadan PON	1 E/GPON port Tonnfhad: Tx1310nm, Rx 1490nm Cónascaire SC / UPC Receiving sensitivity: Less than or equal to -28dBm Cumhacht optúil a tharchur: 0 móide 4dBm Fad tarchurtha: 20KM
Comhéadan LAN	1 x 10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
stiúir	For Status of Power, PON, LOS,LAN1,LAN2
Coinníoll Oibriúcháin	Teocht: 0 céim - móide 50 céim Humidity: 10 percent -90 percent （non-condensing）
Coinníoll Stórála	Temperature : -30 degree - plus 60 degree Humidity :10 percent -90 percent （non-condensing）
Soláthar leictreachas	DC 12V, 1A/1.5A
Ídiú cumhachta	Níos lú ná nó cothrom le 7W
Toise	110mm90mm25mm（LWH）

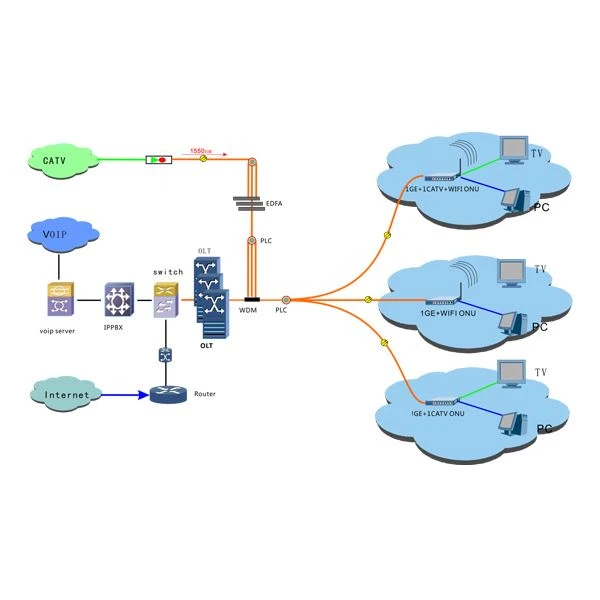

Tógáil Líonra

XPON 1GE+1FE ONU (5)

Eolas a Ordú

Ainm Táirge	Múnla Táirge	Cur síos
XPON HGU	1GE móide 1FE	1GE,1FE Ethernet interface,1 XPON interface, plastic casing, external power supply adapter
